Effective Diffusion Coefficient

In last month's newsletter we discussed diffusion.  This month we continue on this theme with a discussion on the effective diffusion coefficient. A couple of calculators are also given which provide you with different methods of calculating this coefficient.

What is the effective diffusion coefficient?

The effective diffusion coefficient takes into account the fact that diffusion can only take place through pore openings because mineral grains block many of the possible pathways.

How is the effective diffusion coefficient calculated?

There is no method of measuring an effective diffusion coefficient in the field, and so they must be calculated from other properties. Most equations for calculating the effective diffusion coefficient are empirical in nature, with portions that are either determined through laboratory experiments, or with the use of fitting parameters. Most of the equations follow a general structure given by:

D_d'=wD_d

Where D_d' represents the effective diffusion coefficient, D_d is the bulk diffusion coefficient, and w is some scaling value that accounts for the structure of the porous medium.

How does the physical properties of the porous medium effect the effective diffusion coefficient?

There are many different physical properties of the porous medium that can effect the effective diffusion coefficient, the most obvious being porosity. The effective diffusion coefficient will increase with increasing porosity, as there will be less media to prevent the movement of the ions. In addition, depending on the nature of the porous media, the species may adsorb onto the mineral surfaces, decreasing the diffusion as well.

What are some example values of the effective diffusion coefficient?

The effective diffusion coefficient varies significantly depending on the nature of the porous medium, and the species diffusing itself. Bulk diffusion coefficients for some ions in water are given below; these would then have to be scaled to account for the presence of the porous medium (taken from Domenico and Schwartz, 1998).

Cation	Dd (10-6 cm2/s)	Anion	Dd (10-6 cm2/s)
H+	93.1	OH-	52.7
Na+	13.3	F-	14.6
K+	19.6	Cl-	20.3
Rb+	20.6	Br-	20.1
Cs+	20.7	HS-	17.3
Mg2+	7.05	HCO3-	11.8
Ca2+	7.93	CO32-	9.55
Sr2+	7.94	SO42-	10.7
Ba2+	8.48
Ra2+	8.89
Mn2+	6.88
Fe2+	7.19
Cr3+	5.94
Fe3+	6.07

Using these values, the effective diffusion coefficient can then be calculated using one of the following equations/calculators:

Greenkorn(1983)

D_d'=µnD_d

Where µ is an empirical value less than one, and n is porosity.

D_d:    cm²/s

n:

µ:

D_d':   cm²/s



Greenkorn & Kissler(1972)

D_d'=(n/ζ)D_d

Where ζ is tortuosity, which will be discussed in the next newsletter.

D_d:    cm²/s

n:

ζ:

D_d':   cm²/s



Hellferich(1966)

The Hellferich equations give a range of values for the effective diffusion coefficient from:

D_d'=(n/2)D_d

to:

D_d'=(n/(2-n))²D_d

D_d:    cm²/s

n:

D_d': from to   cm²/s





Groundwater Vistas is a groundwater flow and transport model that can be used to simulate the movement of contaminants, via advection, dispersion and diffusion, in the subsurface.

In next month's newsletter we will discuss tortuosity, which is a value describing the path of the water through the porous media.

References

Domenico P.A. and Schwartz, F.W. (1998). Physical and Chemical Hydrogeology. Published by John Wiley & Sons, Inc. New York, NY.

Fetter, C.W. (1994). Applied Hydrogeology; Third Edition.  Published by Prentice-Hall, Inc., Englewood Cliffs, NJ.

Freeze, R.A. and Cherry, J.A. (1979). Groundwater. Published by Prentice-Hall, Inc., Englewood Cliffs, NJ.



Return to top of Page

Groundwater Vistas

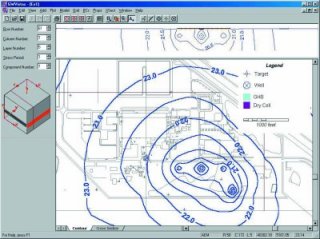

Groundwater Vistas (GV) is a sophisticated Windows graphical user interface for 3-D groundwater flow & transport modeling . GV couples a powerful model design system with comprehensive graphical analysis tools. Developed by the author of ModelCadTM, GV is a model-independent graphical design system for MODFLOW MODPATH (both steady-state and transient versions), MT3DMS, MODFLOWT, MODFLOW-SURFACT, MODFLOW2000, GFLOW, RT3D, PATH3D, SEAWAT and PEST.
