Overview

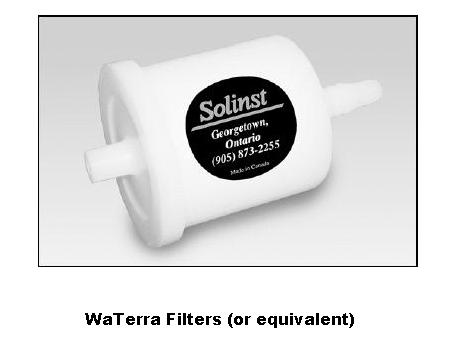

The Model 860 in-line disposable filters are designed specifically for the preparation of groundwater samples for dissolved metals analysis and for filtering large volumes of turbid groundwater. These filters are an easy, effective way to meet the filtration requirements of the U.S. Environmental Protection Agency, as they incorporate a 0.45 µm membrane into a disposable device.

Back to Page Content

Advantages

Filter Design:

• No bulky holder requiring replacable filter discs

• More than five times the effective filtration area than obtained with 142 mm disc filters

• Reduces the need for multiple filter changes

• Assures rapid sample filtration

• No handling of the filter element

• Self-contained and disposable

• No hazardous residue on the filter housing

Saves Time and Money:

• No costly decontamination

• No assembly/disassembly, nor the multiple filter changes associated with reusable filter holders

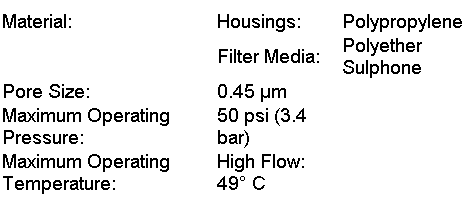

Specifications:

Back to Page Content

700 cm2 High Capacity Filter

Excellent for sampling in silty or particulate-laden groundwater, the high capacity filter gives 700 cm2 of effective filtration area.

Back to Page Content

Inlet and Outlet Connections

Each filter has a 1/2" (12 mm) barb, reducing to 1/4" (6 mm) NPT inlet connector, which fits 3/8" x 1/4" (10 mm x 6 mm) or 5/8" x 1/2" (16 mm x 12 mm) tubing. The outlet connector is a 1/2" (12 mm) straight tube.
