Solinst 615 Drive-Point Piezometer
Drive-Point Piezometers are a cost-effective way to perform initial site investigations and plume delineations, and are used for groundwater or soil gas sampling, UST monitoring, sparge points and water level measurements.



 Solinst 615 - Item 100929 - 6" Piezometer (c/w barb) $58.28
 Solinst 615 - Item 101069 - 1' SS Extension $14.10
 Solinst 615 - Item 101070 - 2' SS Extension $25.38
 Solinst 615 - Item 101071 - 3' SS Extension $37.60
 Solinst 615 - Item 101387 - 3/4" NPT Drive Head for the Drive Point Piezometer $27.26
 Solinst 615 - Item 102081 - 1' Piezometer (c/w barb) $78.96
 Solinst 615 - Item 102174 - Manual Slide Hammer - 25lb $156.04
 Solinst 615 - Item 102475 - Manual Tubing By-pass $30.40
 Solinst 615 - Item 102932 - Manual Drive Head Assembly $140.06
 Solinst 615 - Item 111147 - SS NPT Coupling $11.28
 Solinst 615 - Item 111148 - Delrin NPT Cap $7.13
 Solinst 615C - Item 103160 - Shielded 6" Piezometer (c/w compression1/4" fitting) $82.72
 Solinst 615N - Item 102841 - 6" Piezometer (no barb) $54.52
 Solinst 615N - Item 102842 - 1' Piezometer (no barb) $74.26
 Solinst 615S - Item 102312 - Shielded 1' Piezometer (c/w barb) $154.85
 Solinst 615S - Item 102412 - 1' Replacement Shield $60.16
 Solinst 615S - Item 104366 - Shielded 6" Piezometer (c/w barb) $129.72
 Solinst 615S - Item 104370 - 6" Replacement Shield $36.66
 Solinst 615S - Item 108538 - Shielded 1 ft. Piezometer (c/w compression 1/4" compression) $98.70
 Solinst 615S - Item 109420 - 5/8"x1/2" LDPE tubing (100ft coil) $43.24
 Solinst 615S - Item 109420 - 5/8"x1/2" LDPE tubing (250ft coil) $108.10
 Solinst 615S - Item 109465 - 1/4" x 0.170" LDPE Tubing (100ft coil) $16.92
 Solinst 615S - Item 109465 - 1/4" x 0.170" LDPE Tubing (250ft coil) $42.30
 Solinst 615S - Item 109463 - 1/4" x 0.170" LDPE Tubing (500ft coil) $84.60
 Solinst 615SN - Item 102319 - Shielded 1' Piezometer (no barb) $148.52
 Solinst 615SN - Item 102319 - Shielded 6" Piezometer (no barb) $148.52



Page Content



    Solinst 615 Drive-Point Piezometer

    Model 615 Stainless Steel Piezometer Tip (Drive Point) Overview

    Recommended Applications from GroundwaterSoftware.com

    High Quality Samples

    Sampling and Monitoring Options from GroundwaterSoftware.com


Solinst 615 Drive-Point Piezometer



Solinst Drive-Point Piezometers





  • Ideal for initial site investigations
  • High quality stainless steel and stainless steel piezometer tip
  • piezometer tip
  • Completes a simple, very
  • cost effective well
  • Drives 20 to 25 ft in suitable soils
615N Simple Well Point

  • Water Level Monitoring and Groundwater Sampling



615 Barbed Fitting; 1/2" ID Tubing to Surface

  • Narrow dia. water level monitoring
  • High groundwater sample integrity



  • Vapor / Soil Gas Monitoring

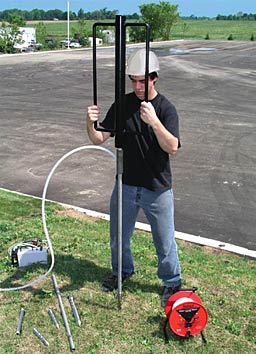

The Solinst Model 615 Drive-Point Piezometers use a high quality stainless steel piezometer tip, 3/4" NPT pipe for drive extensions and LDPE or Teflon sample tubing, if desired. Combine these with an inexpensive Slide Hammer and you have a complete system, complete with inexpensive piezometer. Photo on the upper right shows the installation of a 615 Drive-Point Piezometer, using a Manual Slide Hammer, to be used for water level monitoring with a 101 Water Level Meter and sampling with a 410 Peristaltic Pump.

Back to Page Content


Model 615 Stainless Steel Piezometer Tip (Drive Point) Overview



GroundwaterSoftware.com - The Model 615 Drive-Point Piezometer is designed as an inexpensive piezometer, able to monitor shallow groundwater and soil vapor in suitable conditions. The Drive-Points attach to inexpensive 3/4" (20 mm) NPT steel drive pipe which is widely available through local plumbing and hardware stores to make the whole set up inexpensive, as well as the inexpensive piezometer. Solinst Drive-Point Piezometers are most often installed as permanent well points. They can also be used for short term monitoring applications. High quality samples can be obtained if polyethylene or TeflonŽ lined tubing is attached to the stainless steel piezometer tip (drive point). Groundwater sampling and hydraulic head measurements can be taken within the tubing using small diameter equipment, as described here. Solinst Drive-Point Piezometers can be driven into the ground with any direct push or drilling technology, including the Manual Slide Hammer shown below. To avoid clogging or smearing of the screen during installation, a shielded version is also available.



Manual Slide Hammer

To install Solinst Drive-Point Piezometers inexpensively, the Manual Slide Hammer can be used to drivve the inexpensive piezometer into the ground. The 25lb (11Kg) slide hammer and all other equipment can easily be transported in a car or truck to most sites. A heavy duty drive head is used, on which the slide hammer impacts, and a tubing by-pass ensures that the tubing does not get damaged during installation.

Depth Limitations

Drive-point piezometers are not suitable for all sites. The depth limitations vary, especially with soil conditions and the drive method used can affect the suitably of the inepensive piezometer.

Back to Page Content


Recommended Applications from GroundwaterSoftware.com



  • Groundwater sampling, including VOCs
  • Water level monitoring
  • Base flow monitoring in stream beds
  • Contaminant plume delineations
  • Soil gas sampling
  • UST monitoring
  • Low cost and minimal disturbance site assessment
  • Sparge points

Back to Page Content


High Quality Samples





High Quality Samples

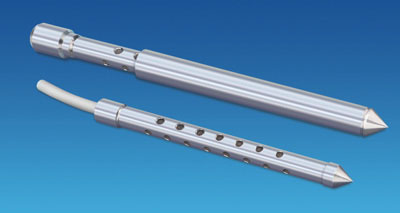

Model 615 Drive-Point Piezometers have a stainless steel, 50 mesh cylindrical filter-screen, within a 3/4" (20 mm) stainless steel drive-point body, screen support and an optional fitting for attachment of sample tubing. The 615 N or 615 SN (both are available from GroundwaterSoftware.com), designed without a tubing barb, is to be used for water level monitoring. This saves money and provides better access for Water Level Meters. The 615 or 615 S has an inner barbed fitting for 5/8" OD x 1/2" ID (16 mm x 12 mm) LDPE or Teflon lined sample tubing. This prevents sample water from contacting the extension rods, and maintains high sample integrity, even when inexpensive galvanized steel extensions are used. The 615 C is ideal for soil vapor sampling. Where an air-tight connection is most desirable, the compression fitting option allows users to attach 1/4" (6 mm) sample tubing directly to the top of the screened portion of the drive-point. The 615 S and 615 SN shielded drive-points have a single use, 1-1/2" (38 mm) dia. shield to avoid smearing and plugging of the screen during installation. The strengthened connector at the top of the drive-point acts as an annular seal, which avoids contamination from higher levels in the hole.

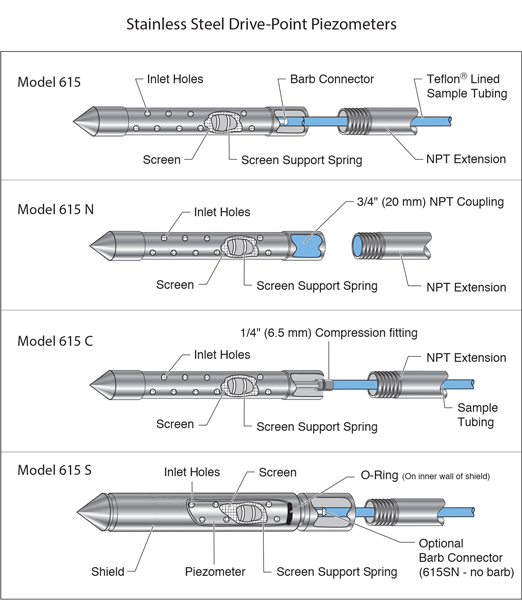

Solinst Drive-Point Piezometers are available in five different configurations; the 615 with a barbed fitting, the 615 N with no barbed fitting, the 615 C with a compression fitting, the 615 S with a barbed fitting and shield, and the 615 SN with a shield and no barbed fitting.

Back to Page Content


Sampling and Monitoring Options from GroundwaterSoftware.com





Sampling Within Narrow Diameters

Direct push sampling has quickly become a popular way to obtain groundwater samples. However, sampling within drivepoints requires a narrow diameter sampler. Solinst offers several options for this specific sampling application.

Peristaltic Pump, Model 410

The Peristaltic Pump uses the suction lift principle. Suitable for 1/4" (6 mm) ID or larger diameters. The Peristaltic Pump provides a regulated and steady flow. It will lift water up to 32 ft. (10 m) at sea level.

Inertial Pump, Model 404

The Inertial Pump consists of a check valve and tubing that is rapidly raised and lowered to lift a sample. The SS10 foot valve suits wells as narrow as 1/2" (12 mm) ID and works to depths of 74 ft. (25 m).

Miniature Point Source Bailer, Model 429

The 1/2" (12 mm) dia. stainless steel bailer works very well in the 615 N or 615 SN. The bottom emptying device permits a regulated, steady flow.

Hydraulic Head

Water levels can be measured in any of the Drive-Points described, using a Solinst Model 101 Water Level Meter, or Model 102 or 102M Mini Laser Marked Coaxial Cable Water Meter.

Accessories from GroundwaterSoftware.com

Solinst supplies 3/4" (20 mm) NPT Delrin caps, and stainless steel couplings and extensions. These accessories can also be locally sourced at plumbing and hardware stores.

Back to Page Content
