Solinst 407 Bladder Pump

"

The Solinst Integra Blader Pump is ideal for most types of municipal, industrial and general environmental applications.


"

Ask a Question

"

Page Content

    Bladder Pump     Converts to Pneumatic DVP     Tubing
    L Flow Purge and Low Flow Sampling     Dedicated Systems     Filters and Packers
    Features     Dedicated Well Caps     SS Versus PVC Bladder Pump
    Benefits     Pump Controllers     Bladder Pump Operation
    The Integra Bladder Pump     12V Oil-Less Air Compressor     Higher Flow Rates
    Portable Integra Pumps     Easy Decon or Disp. Poly



Bladder Pump



Available from GroundwaterSoftware.com, the Solinst Integra® Bladder Pump allows consistent, high quality groundwater sampling in all types of applications. It offers excellent performance and reliability. With Integra Bladder Pumps there is the assurance that there is no air/water contact during sampling. It meets the most rigorous US EPA standards for VOC groundwater monitoring.

The bladder ensures that drive air or gas does not contact the sample, thus avoiding degassing or contamination of the sample. Integra Pumps are rugged and long lasting. Teflon® bladders have a 10-year warranty, while less expensive polyethylene bladders are available for those that prefer to change bladders after each use. Both bladders and intake filters are easily replaced in the field in just a few minutes. No special tools required.

Excellent for either regular flow or low flow sampling, the stainless steel pumps can lift from depths up to 500 ft (150 m) below grade. The PVC Integra operates up to 100 ft (30 m) below grade.

Back to Page Content


Low Flow Purge and Low Flow Sampling



Low flow sampling offers excellent quality groundwater sampling by reducing turbulence. It also reduces purge volumes, and thus sampling time and disposal costs. When using the Solinst 464 Electronic Pump Control Unit (available from GroundwaterSoftware.com), the Solinst Integra Bladder Pump can be adjusted to provide continuous output of 100 ml/min. or less.

Use of a Flow-Through Cell System during low flow sampling, allows the continuous analysis of purge water, in-line, as it flows, so that sampling can begin as soon as the readings stabilize.

Packers are also available to further reduce purge volumes and to speed low flow sampling times.

Back to Page Content


Features



  • Stainless Steel or Low Cost PVC: 1.66” Ø (42 mm) and 1” Ø (25 mm) in 316 stainless steel. 1.66” Ø (42 mm) in PVC.
  • Non-Vertical Applications: Pumps operate effectively at almost any angle and can be placed under landfills, tailings, storage tanks or contaminant plumes.
  • Zero-Submergence Capability: Pumps can achieve groundwater sampling from low yield wells and allow complete emptying of the well.
  • Leachate/Product Pumping: Pneumatic drive pumps are well suited for pumping contaminant liquids. Strong solvents and corrosive chemicals can be easily and economically pumped.
  • Survives Dry Pumping, Dirty Air and Sand: Integra bladders are not damaged by operation in sediment laden water, or in dry pumping conditions.
  • Freeze Protection Kit: Optional accessory available to prevent freezing in the sample line.
  • Compatibility with Solinst 464 Electronic Pump Control

Back to Page Content


Benefits



  • High Quality Groundwater Sampling: Consistently accurate samples with excellent VOC sample integrity.
  • Simplicity: The controller, air compressor and flow-through cell can be easily transported by one person to any site. Hookup to the pump is by compression fittings. Low purge volumes ensure rapid low flow sampling.
  • Cost Savings: Reduced need for repeat sampling and shorter time required for each sampling round.
  • Bladders: Teflon Bladders are guaranteed for 10 years. Inexpensive polyethylene is also available.
  • Compatibility with Solinst 464 Electronic Pump Control allows for output of 100ml/min or less

Back to Page Content


The Integra Bladder Pump



Available from GrounwaterSoftware.com, Integras are manufactured from 316 stainless steel and have Teflon check balls. The bladder most frequently used is Teflon, however polyethylene bladders are also available. This is the ideal sampling pump for most types of municipal, industrial and general environmental applications, especially where VOC analysis of the sample is important.

For metals analysis and situations with highly corrosive liquids, the PVC Integra is more suitable. It has Teflon check balls, a porous polyethylene screen and may have either a Teflon or a polyethylene bladder. The low cost of the PVC pump also makes this a perfect choice for situations where there is a limited budget, but dedicated bladder pumps would be preferred.

The pump body of the standard Integra is a convenient 1.66” dia. (42 mm) and comes in lengths of 2 ft and 4 ft (0.6 m and 1.2 m). 1” dia. (25 mm) bladder pumps are also available for narrower applications and for use in the Waterloo Multilevel System. (See Model 401 Data Sheet.)

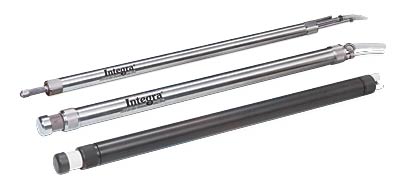

Integra Bladder Pumps Available in Stainless Steel 1"" and 1.66"" (25 mm and 42 mm) or PVC 1.66"" (42 mm)

Back to Page Content


Portable Integra Pumps



For less frequent sampling, and to allow access to multiple monitoring wells, even in remote locations, portable Integra pumping systems are available.

They may be supplied on a freestanding reel, or mounted on a cart with the tubing and pump controller. The rugged cart mounted system uses large pneumatic tires for easy transport over rough terrain.

Back to Page Content


Converts Easily to Pneumatic DVP



The 1.66” dia. (42 mm) by 2 ft (0.6 m) Stainless Steel Integra Bladder Pump (42 x 610 mm) utilizes most of the same parts as the pneumatic drive Solinst 1.66” Double Valve Pump (DVP). The DVP can operate from greater depths and provide higher flow rates.

Conversion from an Integra Bladder Pump to a DVP and back again is quick and easy (approx. 2 min.) and requires no tools.

Back to Page Content


Dedicated Systems



For long term monitoring, GroundwaterSoftware.com recommends dedicating Integra Pumps. This avoids cross-contamination and saves time without the need to decontaminate between sampling events. There is the assurance of no air/water contact during sampling, and the confidence that no cross-contamination will occur from the use of portable equipment.

Integra well caps are designed for ease of use. The vented PVC caps have a quick-connect attachment for the controller unit/air supply. Fittings are provided for both 1/4” OD (6 mm) and 3/8” OD (9 mm) tubing. Each cap comes with a 3 ft (0.9 m) length of discharge line, which is easily replaced, as required.

For water level monitoring there is an access hole to fit a Solinst Model 101 Water Level Meter. An eyebolt is provided for a pump support cable or for suspension of a Solinst Levelogger, (see Model 3001 Data Sheet) or other device.

Back to Page Content

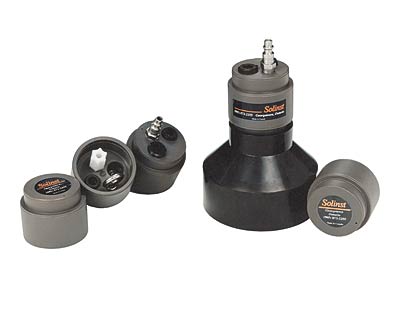

Dedicated Well Caps



The caps slip easily onto 2” dia. (50 mm) wells. Adaptors to fit 4” dia. (100 mm) or other well sizes are also available. The cap seals in place with an o-ring, and comes with a wire connected protective cover. Low profile wellheads are also available for flush mount casing applications.



Back to Page Content

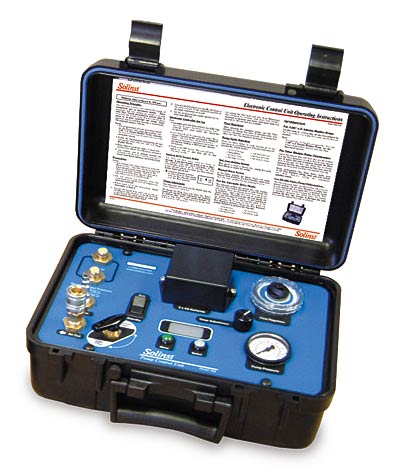

Pump Controllers



Available from GroundwaterSoftware.com, The Solinst 464 Electronic Pump Control Unit uses 8 AA batteries that provide up to 30 hours of continuous use. The Solinst 464 Electronic Pump Control is fully automatic with preset groundwater sampling modes to give a variety of useful drive and vent cycles. These can be further adjusted manually to optimize the flow. It allows faster purge rates and precise low flow control to ensure a representative sample at 100 ml/min or less when sampling for VOCs. The standard Model 466 gives up to 160 psi and the 466 HP offers up to 250 psi output.

These convenient boxes are rugged, dependable and suitable for all environments. Quick-connect fittings allow instant attachment to dedicated well caps, portable reel units and through an in-line dryer to an air compressor or compressed gas source.



Back to Page Content

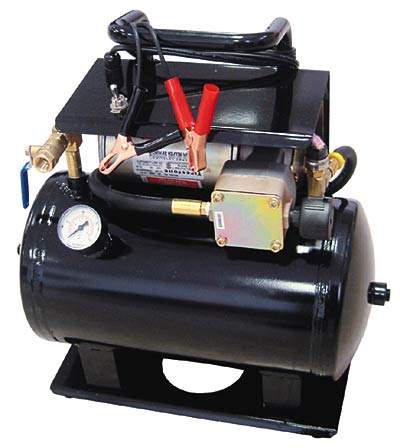

12V Oil-Less Air Compressor



Available from GroundwaterSoftware.com, the Solinst 12 Volt Compressor is lightweight 21 lbs (9.5 kg), compact, and ideal for field use, especially low flow applications of less than 100 ft (30 m) depths. The compressor operates using 12 volt DC power source, such as a car or truck vehicle battery, and comes with alligator clips.

The compressor operates at up to 125 psi and is equipped with a 2 US gallon (7.6 L) air tank which is rated to 150 psi.



Back to Page Content


Easy Decon or Disposable Polyethylene



Integra Bladder Pumps are easy to decontaminate. Everything is very accessible. The tubing may simply be flushed or it is easily replaced.

The pump is quick to disassemble and the bladders and screens are simple to replace in the field. No tools required. Inexpensive polyethylene bladders can be quickly replaced to suit regulatory requirements.

Back to Page Content


Tubing



The standard tubing is 1/4” (6 mm) single line or 1/4” (6 mm) OD dual skip-bonded LDPE. Teflon-lined LDPE and other tubing sizes are also available.

Solinst provides dedicated systems with individual drive and sample lines so that the cost of replacing the sample line is minimized. Dedicated systems can come pre-assembled to the length you need, at no extra charge. Portable systems are provided with 1/4” (6 mm) dual skip-bonded tubing for ease of operation.

Back to Page Content


Filters and Packers



Integra Stainless Steel Bladder Pumps come complete with a 50 mesh intake filter over the sample inlet. These filters are very easy to replace. If required, Solinst also supplies disposable in-line filters which are used on the sample discharge tube. They are adaptable to fit many sizes of tubing.

Model 800 Low-Pressure Packers can be used with Integra Pumps to minimize purge times by reducing purge volumes. This reduces the cost of water disposal and labour. Packers are available in single point or straddle packer designs, and in sizes to fit 2” ( 50 mm) to 5” (127 mm) dia. wells. (See Model 800 Data Sheet.)

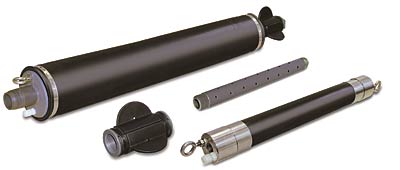

Model 800 Packers - 3.7"" and 1.8"" (94mm and 46 mm)

Back to Page Content


Stainless Steel Versus PVC Bladder Pump





Back to Page Content


Bladder Pump Operation



When an Integra Bladder Pump is lowered into a well, hydraulic pressure allows formation water to enter the central Teflon chamber (the bladder) through the inlet filter.

When compressed air or gas is applied to the drive line it pressurizes the space around the bladder, causing it to collapse and pushes the water up into the sample line. Check valves ensure that no water flows back down through the pump or into the formation.

When compressed air or gas is vented (released), more formation water enters the bladder. When the pressure is reapplied, the fresh formation water is pushed up towards the surface.

The pressure/vent cycles are repeated, providing a steady flow of water up the sample line, without any stripping of volatiles from the sample. Turbidity is minimized due to the low flow rates and the gentle pumping action.

Thus a high quality VOC groundwater sample is obtained.

Back to Page Content


Higher Flow Rates



When larger purge volumes are required, Solinst Integra Bladder Pumps can deliver flow rates up to 2 L/min.

Alternatively a simple conversion kit can be used to quickly turn a stainless steel Integra Bladder Pump into a Solinst Double Valve Pump (DVP). These pneumatic drive DVPs can provide higher flow rates and sample from greater depths than most bladder pumps. Flow rates vary with depth of pump below surface, depth below water level, size of drive and sample tubing, drive and vent cycle times, gas pressure applied and aquifer recharge.

Flow rates of the Integra Bladder Pump and the DVP compare favourably with published data for similar types and sizes of pumps, under similar conditions. For example:

1.66” x 2 ft (42 mm x 610 mm) Bladder Pump at 100 psi, with 1/4” OD drive line and 3/8” OD sample line; 50 ft (15 m) below grade with 25 ft (7.5 m) below water level gives 2 L/min.
