Solinst 3002 - Rainlogger

 Solinst 3002 - Item 111108 - Rainlogger Edge $265.08



Page Content

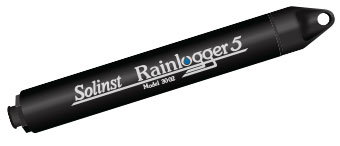

    Model 3002 Rainlogger Edge

    Model 3002 Rainlogger Edge Datasheet

    Applications

    Technical Specifications


Model 3002 Rainlogger Edge



  • Add rainfall data to your monitoring network
  • Compatible with Solinst STS Telemetry Systems
  • Designed to be used with most tipping-bucket rain guages



The Rainlogger is designed to record the tips of a standard tipping-bucket rain gauge with a reed switch output. Compact and waterproof, this durable field unit offers long-term reliability with a battery that lasts up to 10 years. The event time stamp and total rainfall per time period is logged in non-volatile memory, which holds up to 60,000 readings. Sampling is event based, as the Rainlogger records and saves each tip of the tipping-bucket as it happens. Compatible with Levelogger Software and Solinst Telemetry Systems, Rainloggers are excellent for measuring local precipitation, larger scale remote monitoring of watersheds and localized stormwater event monitoring. By purchasing from GroundwaterSoftware.com, Levelogger customers can now add precipitation data to their water level monitoring networks.

Back to Page Content


Model 3002 Rainlogger Edge Datasheet



The Rainlogger Edge is an inexpensive data logger designed to record the tips of a standard tipping-bucket rain gauge with a reed switch output. This compact and durable field unit offers long-term reliability and convenience with a battery that lasts up to 10 years, and improved ESD (electrostatic discharge) protection with an ABS housing. The event time stamp and total rainfall per time period is logged in non-volatile memory, which holds up to 60,000 readings. Sampling is event based, as the Rainlogger Edge records and saves each tip of the tipping-bucket as it happens. top

Detailed Data

Levelogger customers can add rainfall data to their water level monitoring networks using the intuitive Levelogger Software. The Rainlogger Edge provides easy incorporation of precipitation data into existing Levelogger data. Rainfall data can allow correlation between precipitation events and changes in groundwater or surface water levels. The Rainlogger Edge is compatible with all Solinst Levelogger communication and deployment accessories. Logged data can be downloaded direct to a PC or to a hand-held Leveloader. This versatile logger has the ability to integrate into a Solinst Telemetry System and has the option to communicate using SDI-12 protocol (See Model 9100 STS Telemetry System and 3001 Levelogger Series Data Sheets, which can be purchased from GroundwaterSoftware.com)

Advantages

  • Add rainfall data to your Levelogger network
  • ABS housing provides improved ESD protection
  • Memory for up to 60,000 time stamped readings
  • Low maintenance with 10 year battery
  • Designed to be used with most tipping-buckets
  • Compatible with Solinst Telemetry Systems
Operation

The Rainlogger Edge is simply programmed with the user-friendly Levelogger Software. An Optical Reader connects the Rainlogger Edge to a laptop or desktop PC and the Levelogger Software automatically detects the attached Rainlogger. The Rainlogger Edge is easily deployed in the field, using a 3-pin connector cable attached to the rain gauge. Data downloading can be ‘All Data’, ‘Append Data’, or ‘Data Dump’ at any time. Data can be displayed in graph or table format and exported to other programs. The Rainlogger has self-test capability, a reliable EEPROM memory and FRAM back-up memory and the ability to upgrade firmware.

Back to Page Content


Applications



Suggested uses by GroundwaterSoftware.com include:

  • Measuring local precipitation
  • Determining peak rainfall events
  • Stormwater management
  • Remote monitoring of watersheds
  • Ideal for correlating precipitation events to:
  • Groundwater and surface water data
  • Watershed and drainage basin studies
  • Agricultural and forestry studies

Back to Page Content


Technical Specifications



  • Technical Specifications
  • Battery Life 10 years (logging 2 parameters/10 minutes)
  • Clock Accuracy +/- 1 minute/year
  • Operating Temperature -20°C to 80°C
  • Maximum # Readings 60,000 readings
  • Memory Non-volatile EEPROM, FRAM back-up
  • Communication Optical infra-red to RS232 or USB
  • Sampling Mode Event Based, Real Time View
  • Sampling Rate Variable - records each tip
  • Size 7/8" x 7" (22 mm x 175 mm)
  • Weight 4.8 oz (135 grams)
  • Wetted Materials ABS, Delrin®, Viton®
