    Water Level Meter - Model 101

    Operating Principles

    Reels

    Probe Options P2 or P7

    Features

    P2 Probe Tape and P7 PVDF Laser Marked Tape

    Length Options

    Tape Guide/Datum

    Other Options

Water Level Meter - Model 101

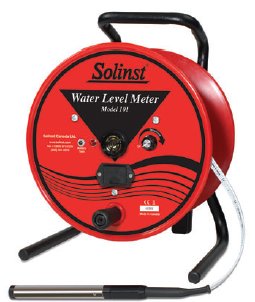

Model 101 Water Level Meters use corrosion proof stainless steel probes attached to permanently marked flat tape, fitted on a well-balanced reel. They are powered by a standard 9 volt battery.

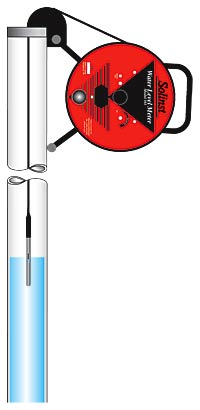

The probes incorporate an insulating gap between electrodes. When contact is made with water, the circuit is completed, activating a loud buzzer and a light. The water level is then determined by taking a reading directly from the tape at the top of the well casing or borehole.

A sensitivity control allows the buzzer to be turned off while in cascading water, and ensures a clear signal in both high and low conductivity conditions.

Back to Page Content

Operating Principles

Model 101 Water Level Meters use corrosion proof stainless steel probes attached to permanently marked flat tape, fitted on a well-balanced reel. They are powered by a standard 9 volt battery.

The probes incorporate an insulating gap between electrodes. When contact is made with water, the circuit is completed, activating a loud buzzer and a light. The water level is then determined by taking a reading directly from the tape at the top of the well casing or borehole.

A sensitivity control allows the buzzer to be turned off while in cascading water, and ensures a clear signal in both high and low conductivity conditions.

Back to Page Content

Reels

With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.

Back to Page Content

Probe Options

The P2 Probe is shielded in design to reduce or eliminate false readings in cascading water. The probe consists of a stainless steel body with a neoprene heat shrink seal. It is not suitable for submergence to any significant depth. Its simple design makes it easy to repair.

P7 Submersible:

The P7 Probe is submersible up to 1000 ft. (300 m), ideal  for measuring total well depth. The sensor at the tip of the  probe provides consistent measurements with almost zero  displacement. The tape seal plug design allows the probe to be  quickly and easily replaced, if required.

Back to Page Content

Features

• Markings each 1/100 ft. or millimeter
• Traceable to national standards
• Sensitivity adjustable to conductivity
• Probes to avoid false readings in cascading water

• Permanent laser markings
• Non-stretch PVDF tape stainless steel conductors

• Rugged, corrosion proof components
• Strong, flexible tape
• Easy to splice and repair

Flexible:

• PVDF replacement tapes are interchangeable with other meters

Back to Page Content

P2 Tape and P7 PVDF Laser Marked Tape

The Model 101 P2 Water Level Meter uses high quality polyethylene tape that reels smoothly, remains flexible and hangs straight in the well. Heat embossed marking each millimeter or 1/100 ft. allow accurate readings. The 3/8" (10 mm) wide tapes come in lengths up to 6000 ft. (1800 m). Seven stranded stainless steel conductors resist corrosion, provide strength and are non-stretch. They make the tape very easy to repair and splice. The dog-bone design reduces adherence to wet surfaces.

The Model 101 P7 Water Level Meter uses extremely durable, PVDF flat tape, traceable to NIST and EU measurement standards. Each tape conductor contains 13 strands of stainless steel, and 6 strands of copper-coated steel, making the tape non-stretch and high in tensile strength and electrical efficiency. The tape has a thick dog bone design that prevents adherence to wet surfaces, and allows it to hang straight in application. The tape is also easy to splice.

The 3/8" (10 mm) tapes come with permanent laser markings every 1/100 ft. or each millimeter.

Back to Page Content

Length Options

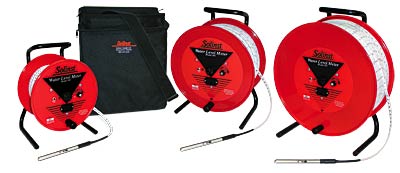

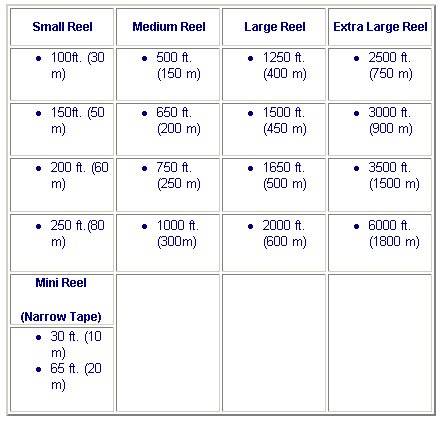

Solinst Model 101 P7 and P2 Water Level Meters are available on reels in the following standard lengths:

Back to Page Content

Tape Guide/Datum

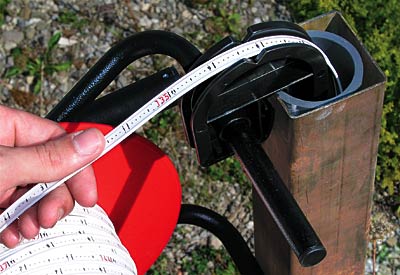

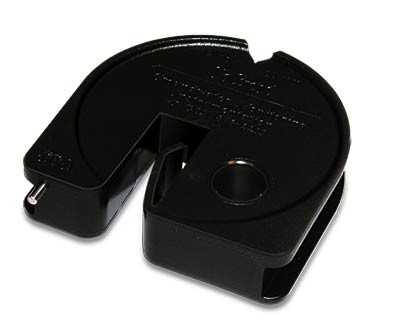

A tape guide is provided with each standard Water Level Meter. It protects the tape from damage on rough edges of well casing and ensures easy, consistent measurements, regardless of who takes the readings. It can also provide reel support on the casing, as shown below.

Back to Page Content

Other Options

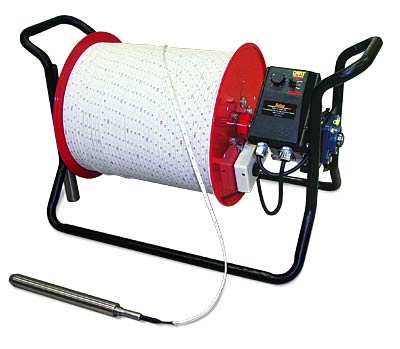

Power reels can be very useful to allow faster or less strenuous operation of longer lengths of tape. Power Reels are available as 110V and 12VDC, on request.

Small and medium padded nylon carrying bags are available, as an optional extra. Their design has a convenient shoulder strap, zippered front pocket, zippered top, and a grommet in the base to prevent moisture build-up.

Replacement probes, tapes with probe and other spare parts are available. Meters can also be returned directly to Solinst, or to authorized repair facilities for service or repair.

The Model 102 Laser Marked Water Level Meter features laser cable markings and is ideal for narrow diameters. (See Model 102 Data Sheet.)
