| Quick Log |
Create
boring log/well construction diagrams without the need for a CAD system
|
|
|
Page
Contents
Using
QuickLog
The new interface for
QuickLog makes data entry easy to learn and easy to remember for users who
may not use the program frequently.

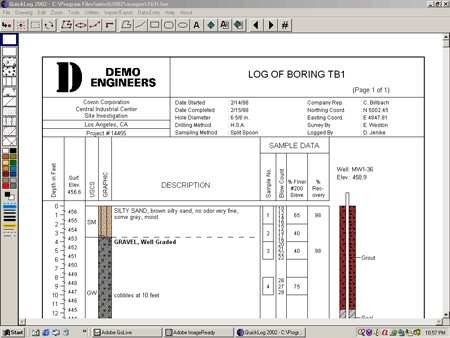

When QuickLog starts up, a default
borehole log is shown:

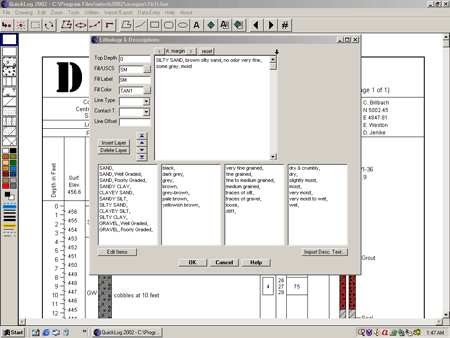

The user then clicks on the
part of the log which he or she would like to edit. A data entry dialog
then "pops up" pertaining to the area clicked:
The above "pop up"
dialog shows one of QuickLog's many time-saving features -- the ability to
choose description items (i.e. Sand, very moist, etc.) from user
customizable lists.
Back
to Page Contents
QuickLog
Key Features
-
Flexible
Format Set-up with Self-Definable Headings
-
Scale
using Feet or Meters, Print Borings over Multiple Pages
-
USCS,
Description Column, Sample Boxes, Blow Count
-
Create
up to 36 User-Defined Columns - Import Data from Outside Files
-
Display
Parameters in Columns or in 4 types of Graphs
-
Detailed
Well Construction, Sieve Analysis Cuttings, Formations
-
Include
your own Graphic Logo and Boring Location Map
-
Screen
Preview: Zoom to any size, pan and scroll
-
Print
to 8.5 x 11 Portrait and Landscape, or 11 x 17 Landscape
-
Export
to CAD via DXF, if desired
Version 2002 - New
Features for QuickLog
-
Simplified
Lithology/Description Editor
-
Maximum
Size of Description Box Increased to 6.5 inches
-
Grain
Size Analysis - 5 new Column Types
-
Use
Start Depth other than Zero
-
Import
and Export to/from Databases
-
Show
Integers or Real Numbers on Scale
-
Increased
Number of Formations Possible to 80
-
Use
Logarithmic Scale on QuickLog Graphs
-
Use
Colored Lines in Parameter Graphs
-
Rotate
Text in Parameter Columns
-
Place
Larger Size Logo
Back
to Page Contents
System Requirements
System Requirements
- 100 Mhz Pentium compatible PC
running Windows 95, 98, 2000, NT, ME, XP
- 32 Mb RAM, 8 Mb free hard disk
space
- 500 Mhz and128 Mb Ram recommended
for faster printing
Back
to Page Contents
|
|
|
|
