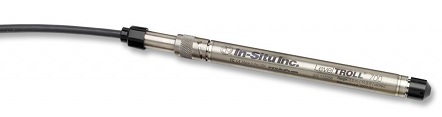

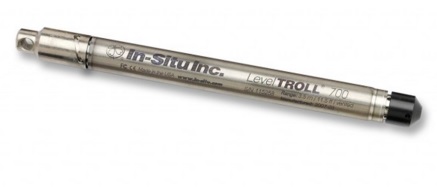

Level TROLL 700 Data Logger



Overview



The Level TROLL 700 is In-Situ’s premier water level data logger, giving groundwater professionals higher data resolution, expanded memory and advanced logging modes for specialized applications. Designed specifically for aquifer characterization, the Level TROLL 700 provides continuous monitoring of water level, water pressure, and temperature. Titanium construction means long-lasting performance in fresh, saline and even contaminated environments, with low-power batteries that last 10 years or more. Available in pressure ranges up to 1153 ft (351 m) for vented configurations and 2274 ft (693 m) for non-vented configurations. Get real-time data via direct-read RuggedCable, or download data periodically. Integrate with telemetry systems and HydroVu Data Services for real-time feedback on all of your water monitoring sites.

Back to Page Content


Level TROLL 700 Features



  • Sub-1 inch diameter (0.72 in; 1.83 cm)
  • Vented (gauged) or non-vented (absolute) pressure measurement
  • Automatic atmospheric compensation (vented models only)
  • Fully sealed, all titanium construction and sensors
  • 4.0 MB memory holds 260,000 data points
  • Advanced logging modes
  • NIST calibration report
  • Rugged Twist-lock cable (sold separately)

Back to Page Content


Benefits of the Level TROLL 700 Data Logger



  • Ideal for specialized applications – Data logger provides highest possible accuracy, precision, and reliability.
  • Reduce field time – Powerful, user-friendly software with special logging modes means faster data collection, and low-power batteries last 10+ years.
  • Protect data and equipment – Durable titanium construction withstands even harsh environments.
  • Simplify project setup and control – Open communications protocols easily integrate with existing telemetry systems and HydroVu Data Services, plus get 24/7 data and automatic event alerts.
  • Streamline data analysis – Win-Situ Software automates water level corrections, post-processing, report generation and data export.

Back to Page Content


Level TROLL 700 Specifications



Weight 0.5 lbs
Dimensions 8.5 x .72 in
Level/Depth/Pressure Sensor Range 100 psig: 70 m (231 ft), 15 psig: 11 m (35 ft), 30 psig: 21 m (69 ft), 300 psig: 210 m (692 ft), 5 psig: 3.5 m (11.5 ft), 500 psig: 351 m (1153 ft)
Protocols 4-20 mA, Modbus/RS485, SDI-12
Memory 2.0 MB
Logging Modes Event, Fast Linear, Linear
Battery Type 3.6 V lithium
Diameter 1.83 cm (0.72 in.) OD
Level/Depth/Pressure Sensor Accuracy @ 15° C ±0.05% Full Scale
Warranty 3 Year
Battery Life 10 years

Back to Page Content


In-Situ Level TROLL 400,500, 700 and BaroTROLL Comparison



General Level TROLL 400 Level TROLL 500 Level TROLL 700 Level BaroTROLL
Temperature ranges1 Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Calibrated: -5-50° C (23-122° F) Storage: -40-80° C (-40-176° F) Calibrated: -5-50° C (23-122° F) Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Calibrated: -5-50° C (23-122° F) Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Calibrated: -5-50° C (23-122° F) Operational: -20-80° C (-4- 176° F) Storage: -40-80° C (-40-176° F) Calibrated: -5-50° C (23-122° F)
Diameter 1.83 cm (0.72 in.) 1.83 cm (0.72 in.) 1.83 cm (0.72 in.) 1.83 cm (0.72 in.)
Length 21.6 cm (8.5 in.) 21.6 cm (8.5 in.) 21.6 cm (8.5 in.) 21.6 cm (8.5 in.)
Weight 197 g (0.43 lb) 197 g (0.43 lb) 197 g (0.43 lb) 197 g (0.43 lb)
Materials Titanium body; Delrin® nose cone Titanium body; Delrin nose cone Titanium body; Delrin nose cone Titanium body; Delrin nose cone
Output options Modbus/RS485, SDI-12, 4-20 mA Modbus/RS485, SDI-12, 4-20 mA Modbus/RS485, SDI-12, 4-20 mA Modbus/RS485, SDI-12, 4-20 mA
Battery type & life2 3.6V lithium; 10 years or 2M readings 3.6V lithium; 10 years or 2M readings 3.6V lithium; 10 years or 2M readings 3.6V lithium; 10 years or 2M readings
External power 8-36 VDC 8-36 VDC 8-36 VDC 8-36 VDC
Memory

Data records3

Data logs

2.0 MB

130,000

50 logs

2.0 MB

130,000

50 logs

4.0 MB

260,000

50 logs

1.0 MB

65,000

2 logs

Fastest logging rate 2 per second 2 per second 4 per second 1 per minute
Fastest output rate Modbus: 2 per second SDI-12 & 4-20 mA: 1 per second Modbus: 2 per second SDI-12 & 4-20 mA: 1 per second Modbus: 2 per second SDI-12 & 4-20 mA: 1 per second Modbus: 2 per second SDI-12 & 4-20 mA: 1 per second
Log types Linear, Fast Linear, and Event Linear, Fast Linear, and Event Linear, Fast Linear, Linear Average, Event, Step Linear, True Logarithmic Linear
Sensor Type/Material Piezoresistive; titanium Piezoresistive; titanium Piezoresistive; titanium Piezoresistive; titanium
Range Absolute (non-vented) 30 psia: 11 m (35 ft) 100 psia: 60 m (197 ft) 300 psia: 200 m (658 ft) 500 psia: 341 m (1120 ft) Absolute (non-vented) 30 psia: 11 m (35 ft) 100 psia: 60 m (197 ft) 300 psia: 200 m (658 ft) 500 psia: 341 m (1120 ft) Absolute (non-vented) 30 psia: 11 m (35 ft) 100 psia: 60 m (197 ft) 300 psia: 200 m (658 ft) 500 psia: 341 m (1120 ft) 1000 psia: 693 m (2273 ft) Gauged (vented) 5 psig: 3.5 m (11.5 ft) 15 psig: 11 m (35 ft) 30 psig: 21 m (69 ft) 100 psig: 70 m (231 ft) 300 psig: 210 m (692 ft) 500 psig: 351 m (1153 ft) 30 psia (usable up to 16.5 psi; 1.14 bar)
Accuracy4 ±0.05% full scale (FS) ±0.1% FS ±0.05% FS ±0.1% FS ±0.05% FS ±0.1% FS ±0.05% FS ±0.1% FS
Resolution ±0.005% FS or better ±0.005% FS or better ±0.005% FS or better ±0.005% FS or better
Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O Level: in., ft, mm, cm, m Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O Level: in., ft, mm, cm, m Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O Level: in., ft, mm, cm, m Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O
Temperature Sensor Silicon Silicon Silicon Silicon
Accuracy ±0.1° C ±0.1° C ±0.1° C ±0.1° C
Resolution 0.01° C or better 0.01° C or better 0.01° C or better 0.01° C or better
Units of measure Celsius or Fahrenheit Celsius or Fahrenheit Celsius or Fahrenheit Celsius or Fahrenheit
Warranty 3 years 3 years 3 years 3 years
Notes 1 Temperature range for non-freezing liquids. 2 Typical battery life when used within the factory-calibrated temperature range. 3 1 data record = date/time plus 2 parameters logged (no wrapping) from device within the factory-calibrated temperature range. 4 Across factory-calibrated pressure range. 5 Across factory-calibrated pressure and temperature ranges. 6 Up to 5-year (total) extended warranties are available for all sensors—call for details. Delrin is a registered trademark of E.I. du Pont de Nemours and Company. Specifications are subject to change without notice
