KOZENY-CARMAN EQUATION

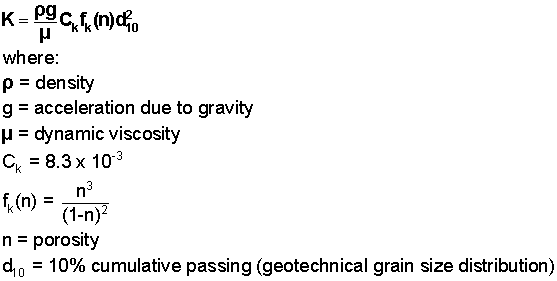

The Kozeny-Carman equation is one of the most widely accepted and used derivations of permeability as a function of the characteristics of the medium.  This equation was originally proposed by Kozeny (1927) and was then modified by Carman (1937, 1956) to become the Kozeny-Carman equation.  In essence, this equation will estimate the permeability of media based on a grain size distribution. This equation is given by:


Hydraulic Conductivity Estimates

Estimating Hydraulic Conductivity from Grain Size Analysis using the Kozeny-Carman method


Input

Groundwater temperature estimate:   oC

n (porosity):

d10 (from a geotechnical plot; % passing): m

Hydraulic Conductivity: m/s




There are many resources available for more information on the Kozeny-Carman equation.  For this newsletter the following textbooks were used:

Batu, V. (1998). Aquifer Hydraulics; A Comprehensive Guide to Hydrogeologic Data Analysis. Published by John Wiley & Sons, Inc. New York, NY.

Bear, J. (1972). Dynamics of Fluids in Porous Media. Published by American Elsevier. New York, NY.
